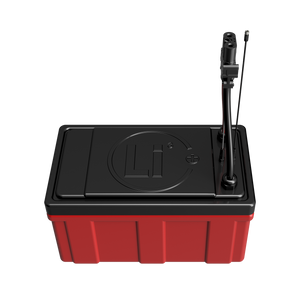

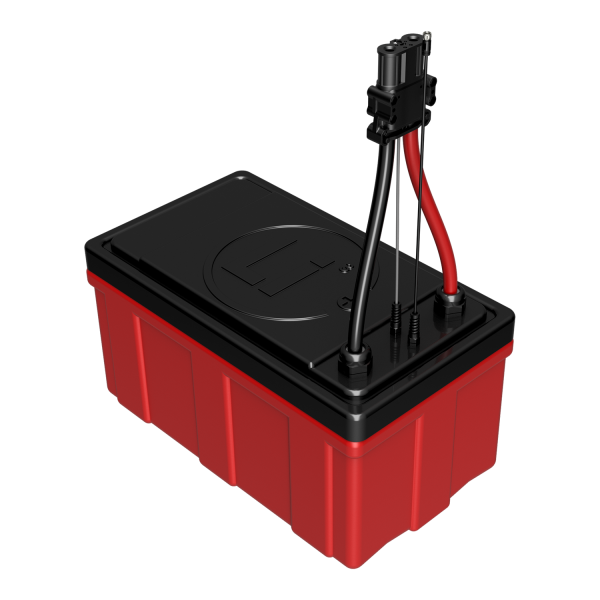

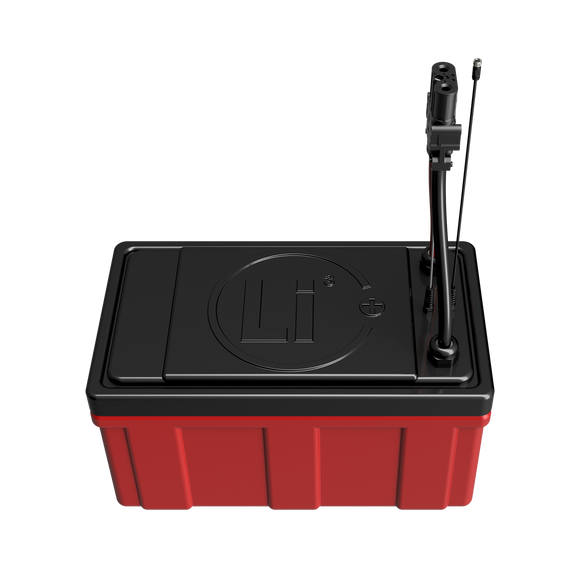

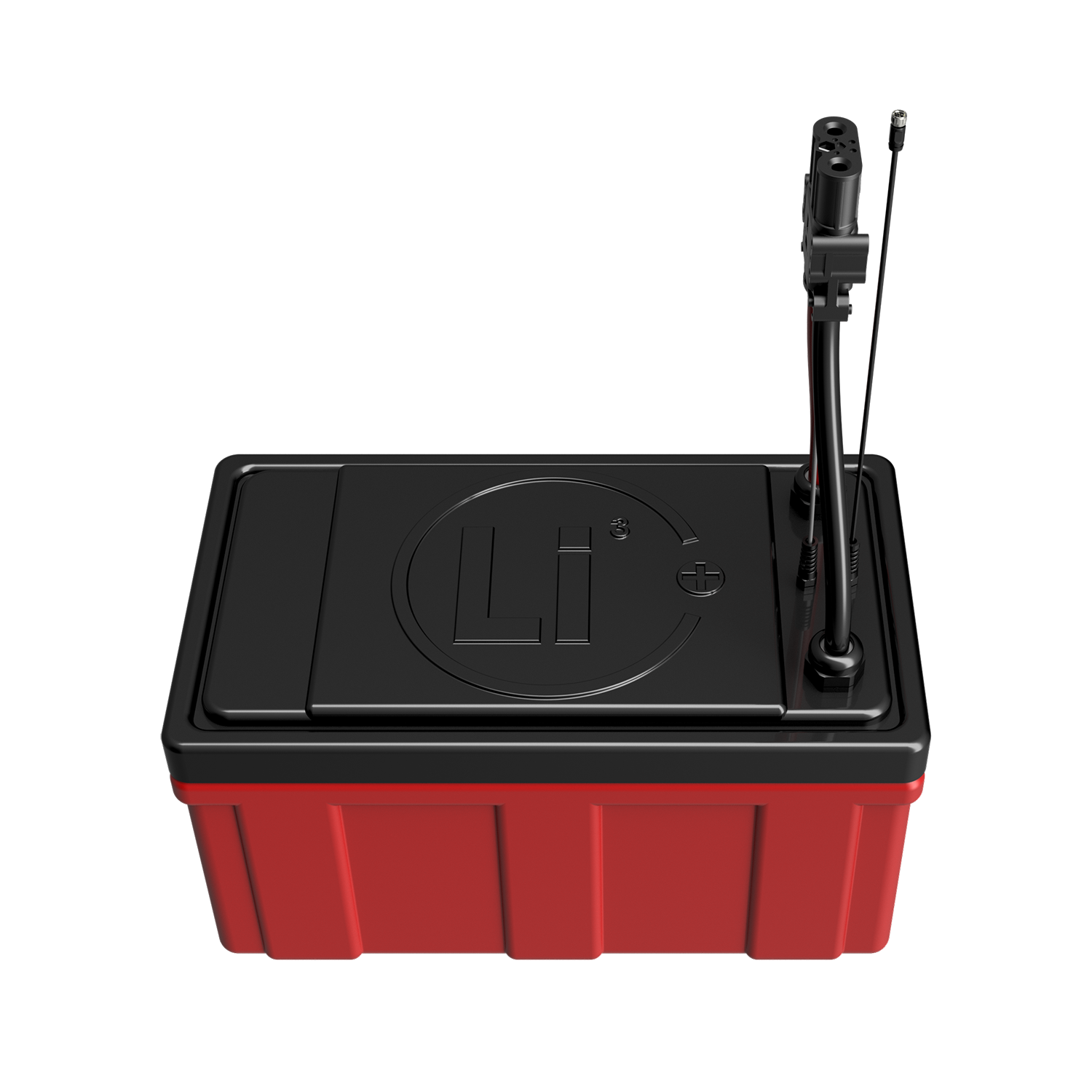

24V 225AH 8D GT Module
MODEL NUMBER: GT24V225A-8D-DIN-MODULE
ENERGY:
225 AMP HOURS
PULSE AMPS: 2250 (1 SEC)
5760 WATT-HOURS
EXTERNAL BMS REQUIRED
BMS SOLD SEPARATELY. SEE BMS DATA SHEET PROVIDED BY LITHIONICS BATTERY®.
Item
Model:
GT24V225A-8D-DIN-MODULE
Nominal Voltage:
25.6V
Nominal Capacity:
225 AH
Nominal Watt Hours:
5760 WH
Internal Resistance:
<300 milliohms
Charge
Charging temperature range:
32F/0C to 113F/45C
Charge voltage:
29.2V
Recommended float charge voltage:
26.8V
Recommended charge current:
112.5A
Allowed max charge current:
225A
Discharge
Discharging temperature range:
-4F/-20C to 131F/55C
Output Voltage Range:
23.2V to 26.8V
Recommended discharge current:
225A
Max discharge current:
337.5A
Pulse discharge current:
2250 Amps (1 SEC)
Discharge cut-off voltage:
NeverDie® Power Reserve @ 24.00V Low-Voltage Cut-Off @23.2V
Mechanical characteristics
Length:
23.0in
Width:
13.0in
Height:
12.0in
Weight:
Approx. 125lbs (56.7kg)
Storage
Storage Temperature & Humidity Range:
< 1 Month
-4~95°F (-20~35°C), 45~75%RH
< 3 Months
14~86°F (-10~30°C), 45~75%RH
Recommended storage
59~95°F (15~35°C)，45%RH~75％RH
Self-discharge rate:
Residual capacity
≤3% per month; ≤15% per year
Reversible capacity
≤1.5%per month; ≤8% per year
Long Term Storage:
If the battery needs to be stored for > 3 months the voltage should be 26.4V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.
