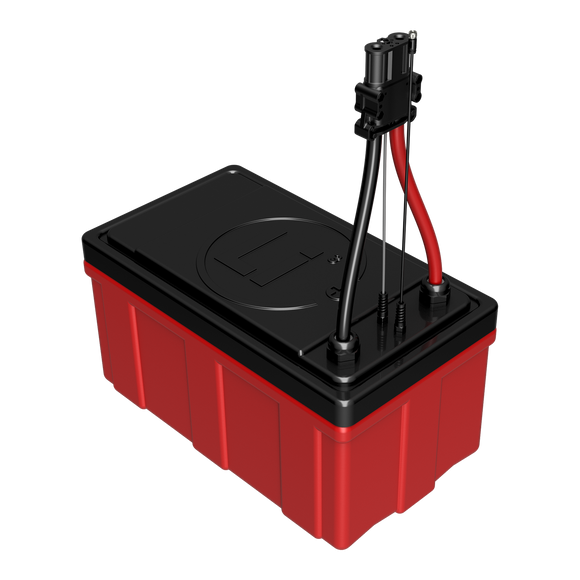

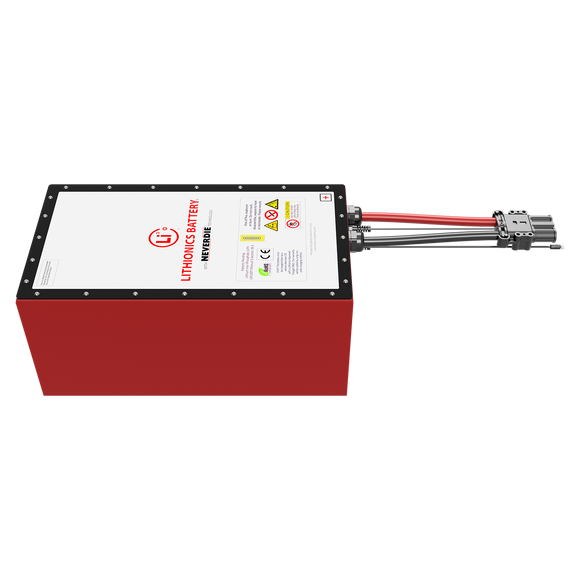

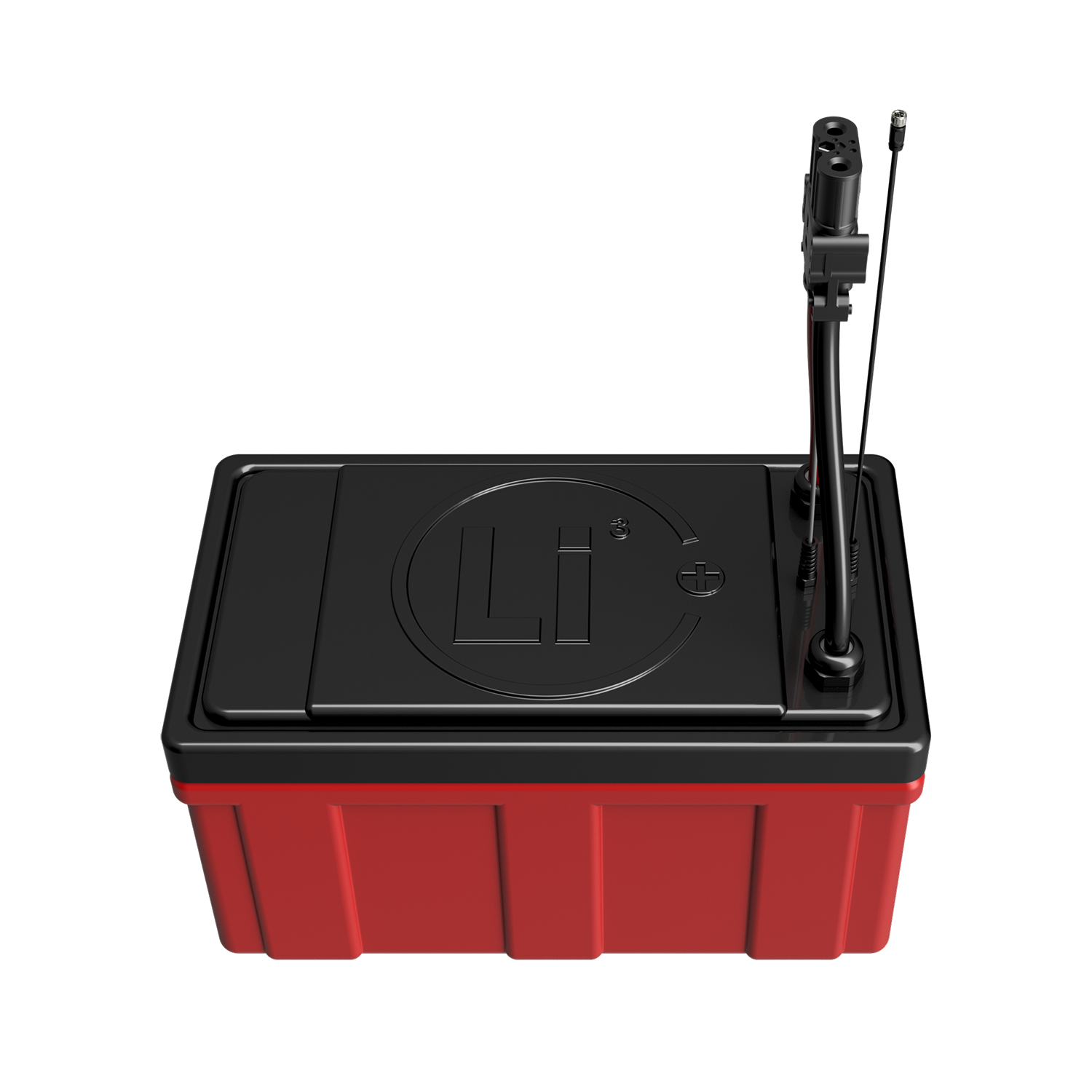

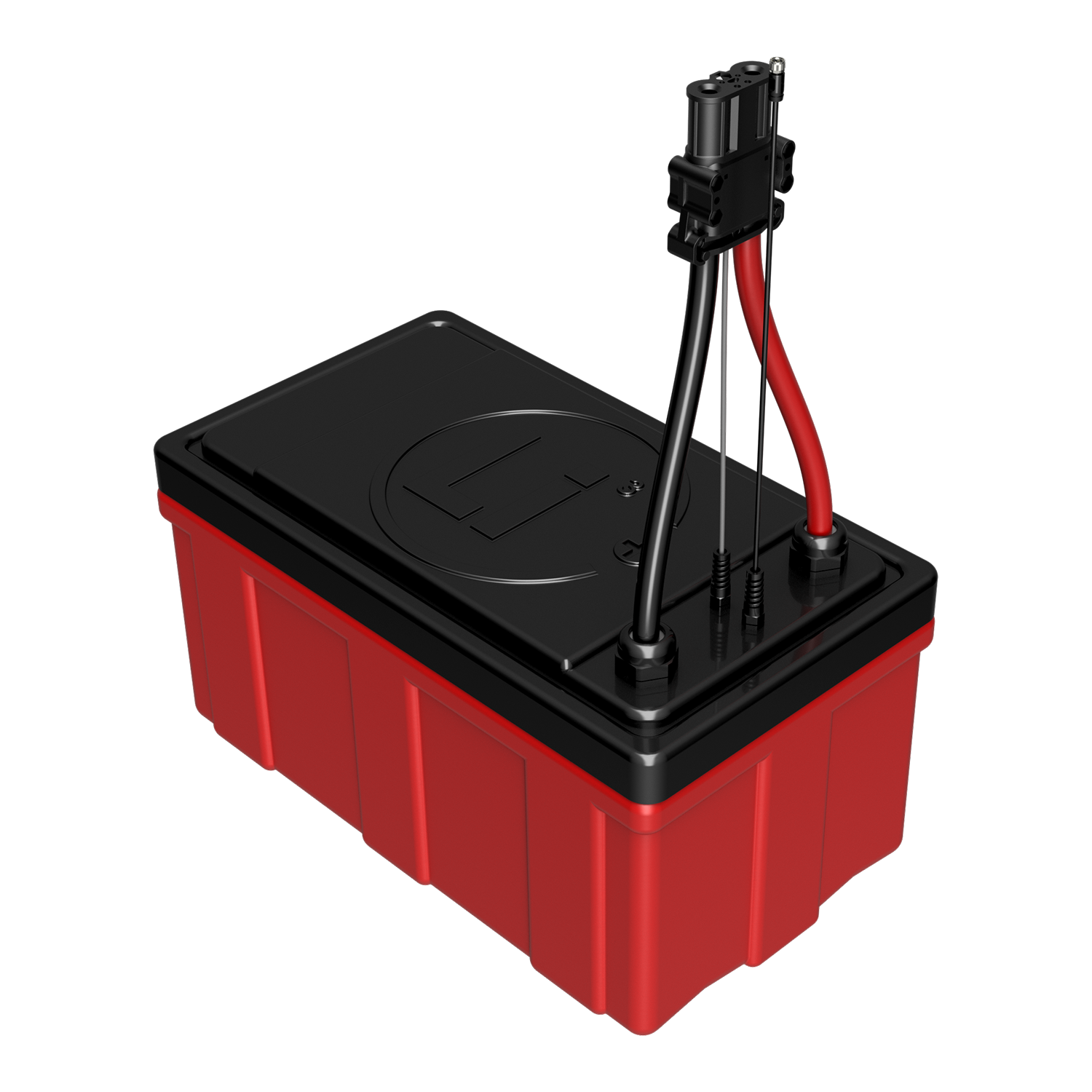

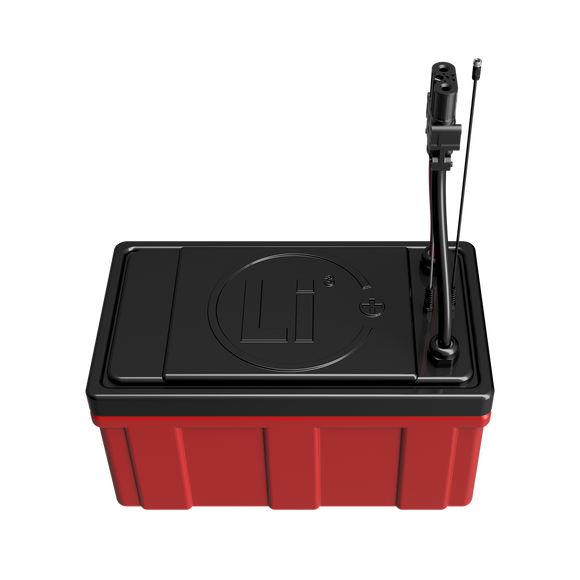

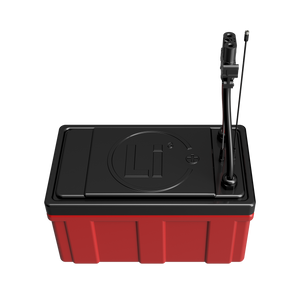

102V 75AH 8D GT Module
MODEL NUMBER: GT102V75A-8D-DIN-MODULE
ENERGY:
75 AMP HOURS
PULSE AMPS: 750 (1 SEC)
7680 WATT-HOURS
EXTERNAL BMS REQUIRED
BMS SOLD SEPARATELY. SEE BMS DATA SHEET PROVIDED BY LITHIONICS BATTERY®.
Item
Model:
GT102V75A-8D-DIN-MODULE
Nominal Voltage:
102.4V
Nominal Capacity:
75 AH
Nominal Watt Hours:
7680 WH
Internal Resistance:
<300 milliohms
Charge
Charging temperature range:
32F/0C to 113F/45C
Charge voltage:
116.8V
Recommended float charge voltage:
107.2V
Recommended charge current:
50A
Allowed max charge current:
75A
Discharge
Discharging temperature range:
-4F/-20C to 131F/55C
Output Voltage Range:
92.8V - 107.2V
Recommended discharge current:
75A
Max discharge current:
150A
Pulse discharge current:
750 Amps (1 SEC)
Discharge cut-off voltage:
NeverDie® Power Reserve at 96.0V Low Voltage Cut-Off at 92.8V
Mechanical characteristics
Length:
23.0in
Width:
13.0in
Height:
12.0in
Weight:
Approx. 150lbs (68kg)
Storage
Storage Temperature & Humidity Range:
< 1 Month
-4~95°F (-20~35°C), 45~75%RH
< 3 Months
14~86°F (-10~30°C), 45~75%RH
Recommended storage
59~95°F (15~35°C)，45%RH~75％RH
Self-discharge rate:
Residual capacity
≤3% per month; ≤15% per year
Reversible capacity
≤1.5%per month; ≤8% per year
Long Term Storage:
If the battery needs to be stored for > 3 months the voltage should be 105.6V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.
